TCC-TP-PBF

Hinged joint with mounting base and clamp

Technopolymer

TCC-TP-PBF-S

Hinged joint with mounting base and clamp
Without teeth

TCC-TP-PBF-T

Hinged joint with mounting base and clamp
With teeth

TCC-TP-PBF-S

Hinged joint with mounting base and clamp
Without teeth

Clamp and base

Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 9005 (C9) black colour or grey RAL 7040 (C33) colour, matte finish.

Screws and nuts  (supplied)

Cylindrical-head screw with hexagon socket in AISI 304 stainless steel with anti-seizure treatment.

Self-locking nuts in AISI 304 stainless steel.

Standard executions

  • TCC-TP-PBF-T: with teeth.
  • TCC-TP-PBF-S: without teeth.

Features

Joints comprising bases with external teeth and clamps with internal teeth (36 teeth) have a 10° adjustment angle.

Joints comprising bases and clamps without teeth can be positioned at any angle.

Clamps for tubes with a diameter of 30 ± 0.2 mm.

For smaller diameter tubes, the hole reduction sleeve can be used TCC-A (to be ordered separately).

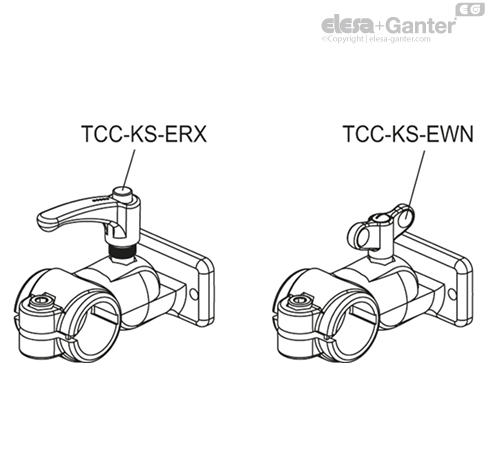

The "s" grub screws may be replaced by the kit TCC-KS.

Technical data

The resistance values shown in the table were measured during laboratory tests at ambient temperature with the screws tightened to the suggested torque "C#".

Accessories on request (to be ordered separately)

  • TCC-A: reduction sleeves.
  • TCC-KS: clamping kit.
  • GN 197: monitor mounts.
  • TCC-KV: screws and clamping nuts.
  • GN 990: connecting tubes.
