GN 289

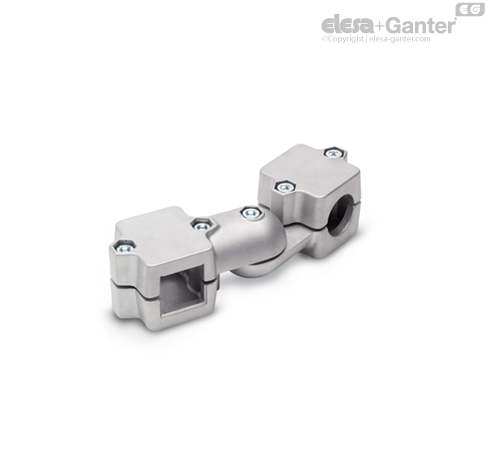

Swivel clamp connector joints

Aluminium / with two-part clamp pieces

GN 289

Swivel clamp connector joints
Swivel clamp connector joints

GN 289

Swivel clamp connector joints
Swivel clamp connector joints

Identification No.

No. 2: with 5 Stainless Steel-Clamping screws DIN 912

Type

Type S: stepless adjustment

Aluminium

plastic coated

black RAL 9005, textured finish SW

blank BL

matt shot-blasted

Clamping bores not machined

Socket cap screws DIN 912

Stainless Steel AISI 304

Hexagon nuts DIN 985

Stainless Steel AISI 304

GN 289 swivel clamp connector joints are an assembly of two GN 279  swivel clamp connectors.

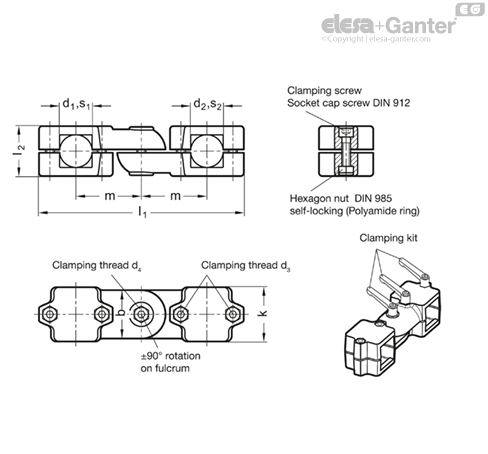

The clamping bores of the swivel clamp connector joints GN 289 are not machined and designed for construction tubes GN 990  or DIN 2391, DIN 2395 and DIN 2462 respectively.

The swivel clamp connectors have an identical swivel width “b”, so that all bores „d1/s1" and „d2/s2“ can be combined as required.

The standard version of the clamping screws are socket cap screws with hexagonal socket DIN 912. They can be replaced by adjustable clamping levers GN 911  (see table of dimensions).
