GN 283

Swivel Clamp Connector Joints

Aluminum / Stainless Steel

GN 283

Swivel Clamp Connector Joints
Swivel clamp connector joints

GN 283-AL

Swivel Clamp Connector Joints

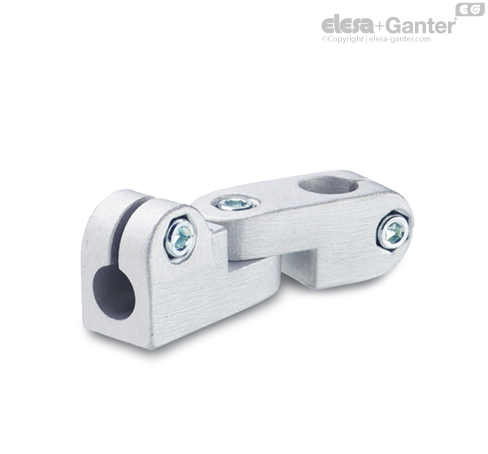

Aluminum

GN 283-NI

Swivel Clamp Connector Joints

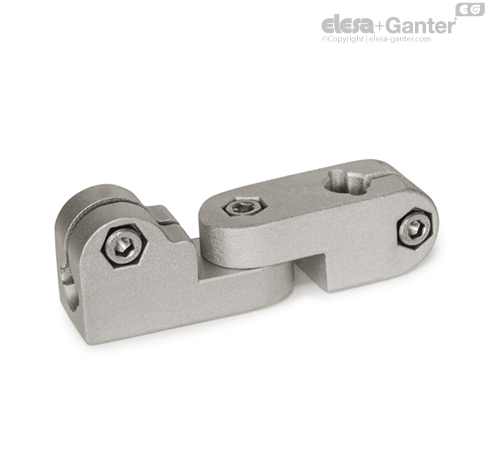

Stainless Steel

GN 283

Swivel Clamp Connector Joints
Swivel clamp connector joints

Identification No.

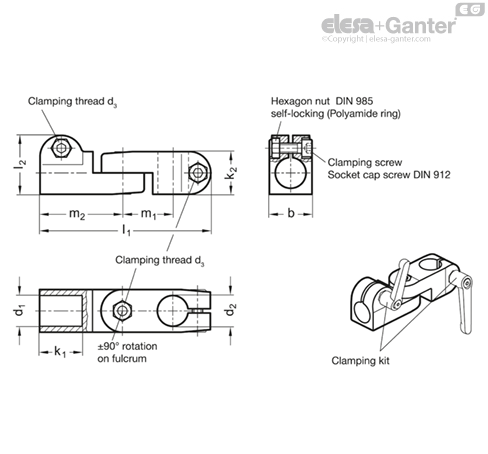

No. 2: with 3 Stainless Steel-Clamping screws DIN 912

Aluminium

plastic coated

black RAL 9005, textured finish SW

blank BL

matt shot-blasted

Clamping bores mechanically machined

Socket cap screws DIN 912

Stainless Steel AISI 304

Hexagon nuts DIN 985

Stainless Steel AISI 304

GN 283 swivel clamp connector joints are an assembly of the swivel clamp connectors GN 273 GN 275  and GN 273 GN 275 . Since the swivel clamp connectors have an identical swivel width “b”, all bores “d1 / d2” can be combined as required.

The clamping bore is mechanically machined and designed for construction tubes GN 990  or DIN 2391, DIN 2395 and DIN 2462 respectively.

The standard version of the clamping screws are socket cap screws with hexagonal socket DIN 912. They can be replaced by clamping kits GN 911  (see table of dimensions).
