GN 276

Swivel Clamp Connectors

Aluminum

GN 276

Swivel Clamp Connectors
Swivel clamp connectors

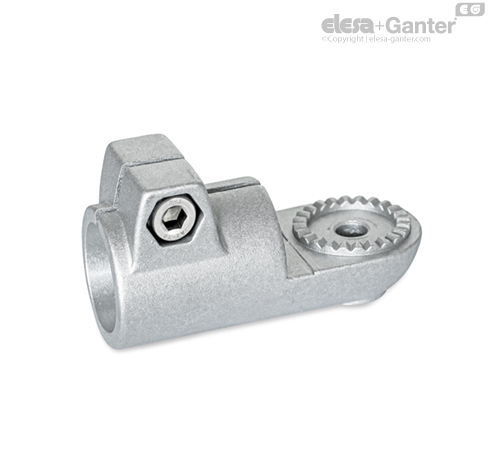

GN 276-AV

Swivel Clamp Connectors
With external serration

GN 276-IV

Swivel Clamp Connectors
With internal serration

GN 276-MZ

Swivel Clamp Connectors
With centering step

GN 276-OZ

Swivel Clamp Connectors
Without centering step (smooth)

GN 276

Swivel Clamp Connectors
Swivel clamp connectors

Identification No.

No. 2: with Stainless Steel-Clamping screw DIN 912

Types

  • Type OZ: without centring step (smooth)
  • Type MZ: with centring step
  • Type AV: with male serration
  • Type IV: with female serration

Aluminium

plastic coated

black RAL 9005, textured finish SW

blank BL

matt shot-blasted

Clamping bore mechanically machined

Socket cap screws DIN 912

Stainless Steel AISI 304

Hexagon nuts DIN 985

Stainless Steel AISI 304

The clamping bore of GN 276 swivel clamp connectors is mechanically machined and designed for construction tubes GN 990  or DIN 2391, DIN 2395 and DIN 2462 respectively.

The standard version of the clamping screw is a socket cap screw with hexagonal socket DIN 912. It can be replaced by a clamping kit GN 911  (article code see table of dimensions).

GN 276 swivel clamp connnectors can be assembled with swivel clamp connectors GN 272 , GN 274  or GN 278  to create swivel clamp connector joints.
