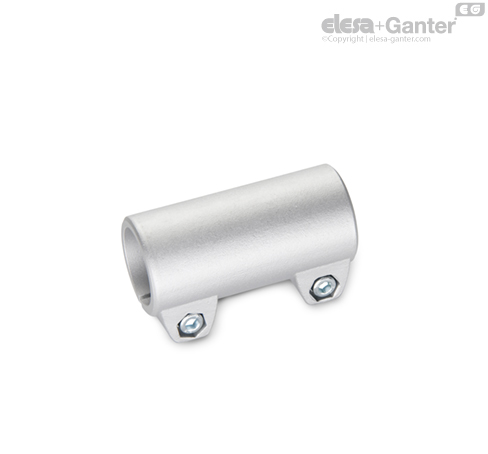

GN 242

Tube connectors

Aluminum

GN 242

Tube connectors
Tube connector joints

GN 242

Tube connectors
Tube connector joints

Identification No.

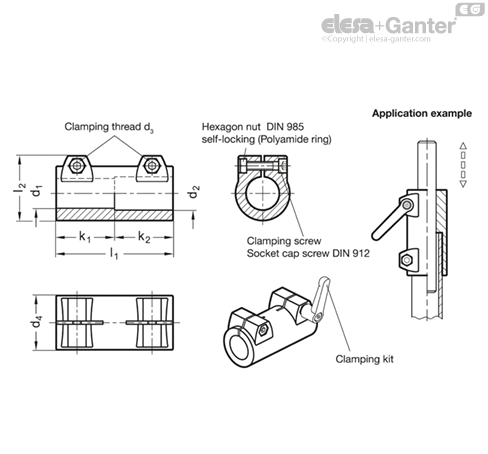

No. 2: with 2 Stainless Steel-Clamping screws DIN 912

Aluminium

plastic coated

black, RAL 9005, textured finish SW

blank

matt shot-blasted BL

Clamping bores mechanically machined

Socket cap screw DIN 912

Stainless Steel AISI 304

Hexagon nuts DIN 985

Stainless Steel AISI 304

The clamping bores of GN 242 tube connector joints are mechanically machined and designed for construction tubes GN 990  or DIN 2391, DIN 2395 and DIN 2462 respectively.

The standard version of the clamping screws are socket cap screws with hexagonal socket DIN 912. They can be replaced by clamping kits GN 911  (article code see table of dimensions).

  • d1 / d2 with different bores
