GN 194

T-Angle connector clamps

Aluminum, Multi Part Assembly

GN 194

T-Angle connector clamps
T-Angle connector clamps

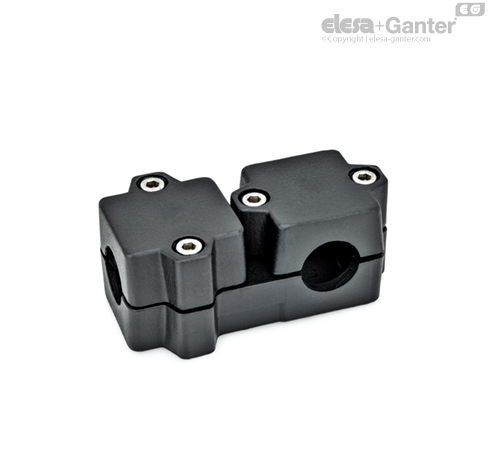

GN 194-B-B

T-Angle connector clamps
Bore-Bore

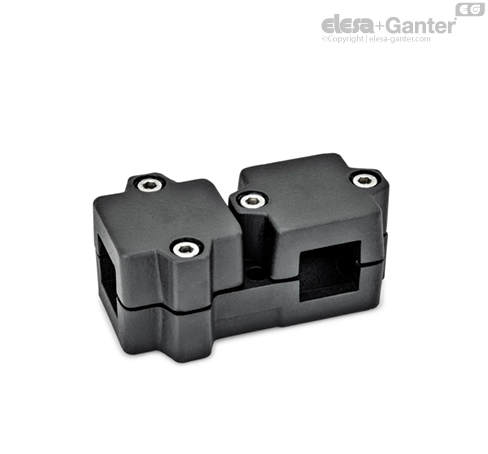

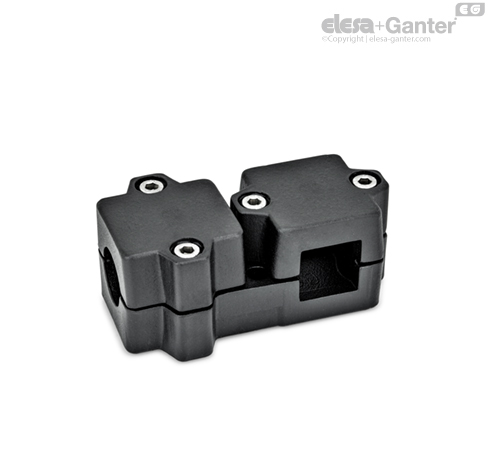

GN 194-B-S

T-Angle connector clamps
Bore-Square

GN 194-S-B

T-Angle connector clamps
Square-Bore

GN 194-S-S

T-Angle connector clamps
Square-Square

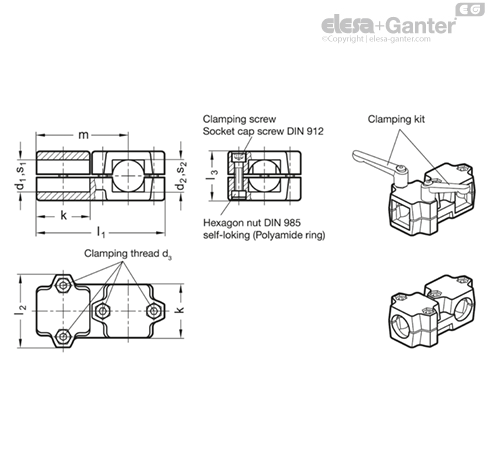

GN 194

T-Angle connector clamps
T-Angle connector clamps

Identification No.

No. 2: With 4 stainless steel socket cap screws DIN 912

Aluminum

Powder coated

Black, RAL 9005, textured finish SW

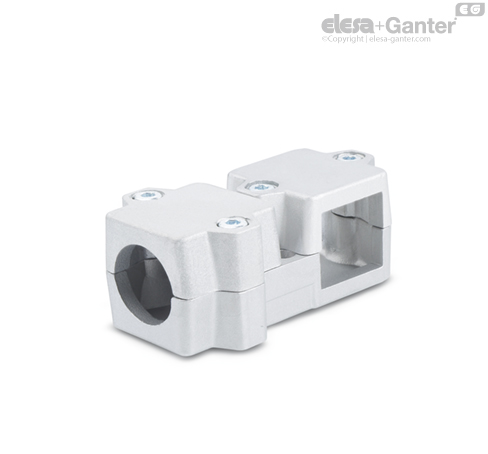

Plain finish, matte shot-blasted BL

Socket cap screws DIN 912

Stainless steel AISI 304

Hex nuts DIN 985

Stainless steel AISI 304

Self-locking via polyamide ring

The clamping bores of T-angle connector clamps GN 194 are not machined and designed for construction tubes GN 990  or DIN 2391, DIN 2395 and DIN 2462.

The versions with square bores are also suitable for use with profile systems.

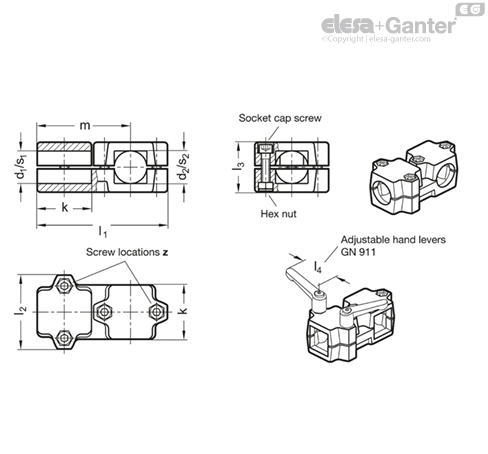

At the screw locations z, the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911   listed in the table as accessories.

  • Adjustable Hand Levers GN 911
