GN 171

Flanged Base Plate Connector Clamps

Aluminum, Split Assembly

GN 171

Flanged Base Plate Connector Clamps
Flanged Base Plate Connector Clamps

GN 171-B

Flanged Base Plate Connector Clamps

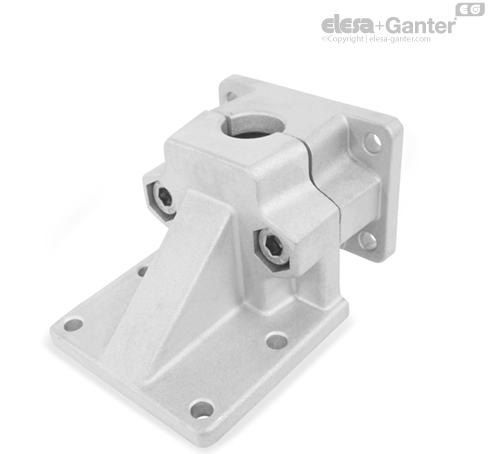

Bore

GN 171-S

Flanged Base Plate Connector Clamps

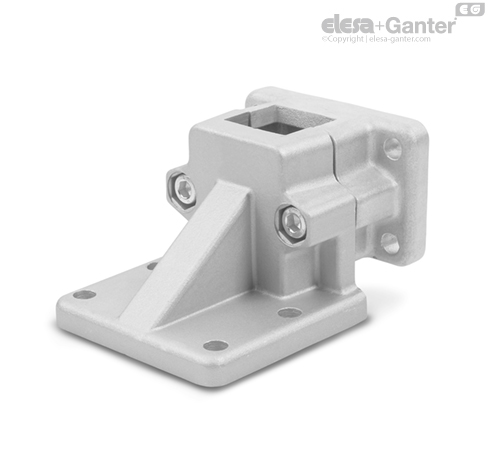

Square

GN 171

Flanged Base Plate Connector Clamps
Flanged Base Plate Connector Clamps

Identification no.

No. 2: With 2 stainless steel socket cap screws DIN 912

Aluminum

  • Powder coated

Black, RAL 9005, textured finish SW

  • Plain, matte shot-blasted BL

Socket cap screws DIN 912

Stainless steel AISI 304

Hex nuts DIN 985

Stainless steel AISI 304

Self-locking via polyamide ring

The clamping bore of flanged base plate connector clamps GN 171 is not machined and designed for GN 990 or DIN 2391, DIN 2395 and DIN 2462 construction tubes.

The square designs are also suitable for use with profile systems.

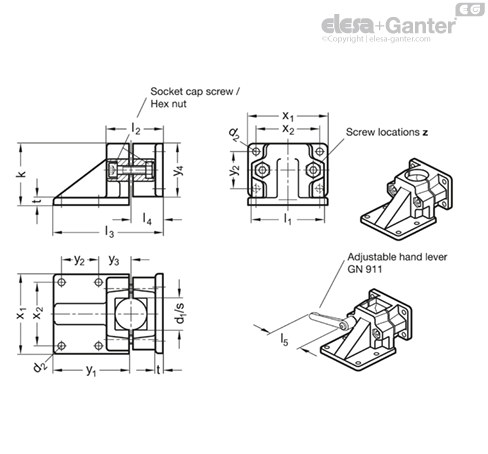

At the screw locations z the socket cap screws reduce the bore cross-section for clamping.

For clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessory.

  • Adjustable Hand Levers GN 911
