GN 165

Base Plate Connector Clamps

Aluminum, Split Assembly

GN 165

Base Plate Connector Clamps
Base plate connector clamps

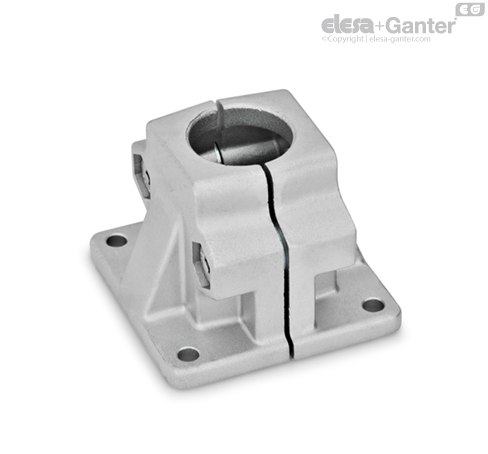

GN 165-B

Base Plate Connector Clamps
Bore

GN 165-S

Base Plate Connector Clamps
Square

GN 165

Base Plate Connector Clamps
Base plate connector clamps

Identification No.

No. 2: with 2 Stainless Steel-Clamping screws DIN 912

Aluminium

plastic coated

black, RAL 9005, textured finish SW

blank

matt shot-blasted BL

Clamping bores not machined

Socket cap screws DIN 912

Stainless Steel AISI 304

Hexagon nuts DIN 985

Stainless Steel AISI 304

The clamping bores of the base plate connector clamps GN 165 are not machined and specially designed for construction tubes GN 990  or DIN 2391, DIN 2395 and DIN 2462 respectively.

The square versions are also suitable for profile systems.

The standard clamping screws are socket cap screws DIN 912. They can be replaced by adjustable clamping kit GN 911  (article code see table of dimensions).
