GN 163.5

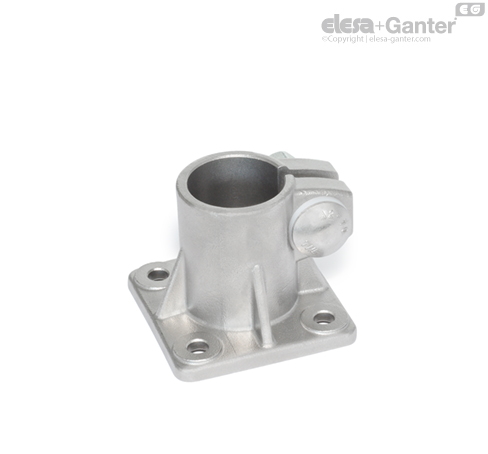

Stainless Steel-Base plate connector clamps

GN 163.5

Stainless Steel-Base plate connector clamps
Stainless Steel-Base plate connector clamps

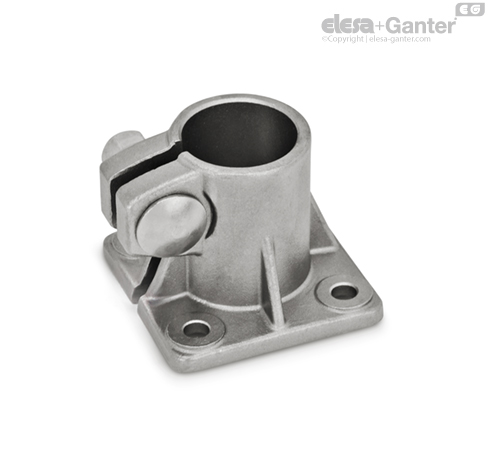

GN 163.5-A

Stainless Steel-Base plate connector clamps
Without seals

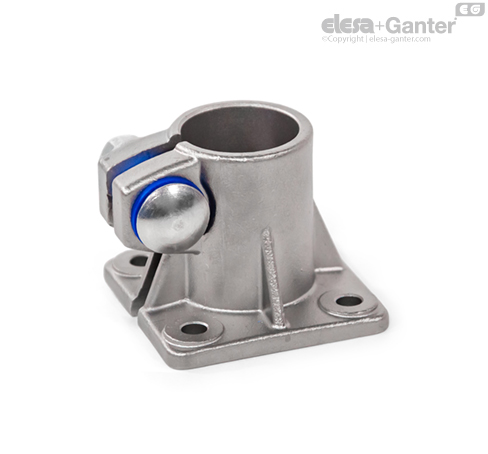

GN 163.5-B

Stainless Steel-Base plate connector clamps
With seals

GN 163.5

Stainless Steel-Base plate connector clamps
Stainless Steel-Base plate connector clamps

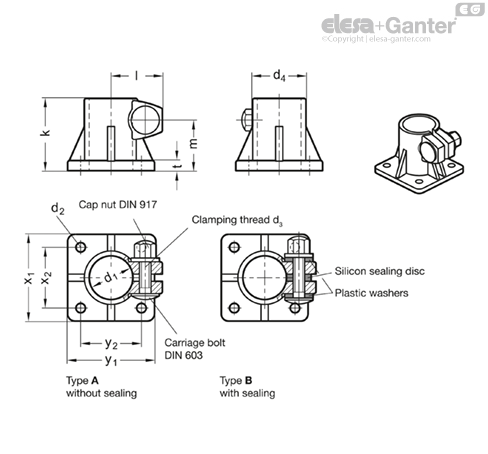

Types

  • Type A: without sealing
  • Type B: with sealing

Stainless Steel

  • AISI CF-8
  • matt shot-blasted

Clamping bores

mechanically machined

Carriage bolt DIN 603

Stainless Steel A2

Cap nuts DIN 917

Stainless Steel A2

Sealings

Washers

Plastic (Polyacetal POM)

Edge ring

Silicon, 40 ... 60 Shore A

The clamping bores of the Stainless Steel-Base plate connector clamps GN 163.5 are mechanically machined and designed for construction tubes GN 990  or DIN 2391, DIN 2395 and DIN 2462 respectively.

The shape of the clamping screws / nuts prevents the formation of wetness due to dammed-up water. The designs with sealing (Type B) also seals bore holes and threads.
