GN 162.8

Base Plate Connector Clamps

Aluminum, with Grub Screw

GN 162.8

Base Plate Connector Clamps
Base Plate Connector Clamps

GN 162.8

Base Plate Connector Clamps
Base Plate Connector Clamps

Identification no.

No. 3: With stainless steel grub screw DIN 913

Aluminum

  • Powder coated

Black, RAL 9005, textured finish SW

  • Plain, matte shot-blasted BL

Grub screw DIN 913

Stainless steel AISI 304

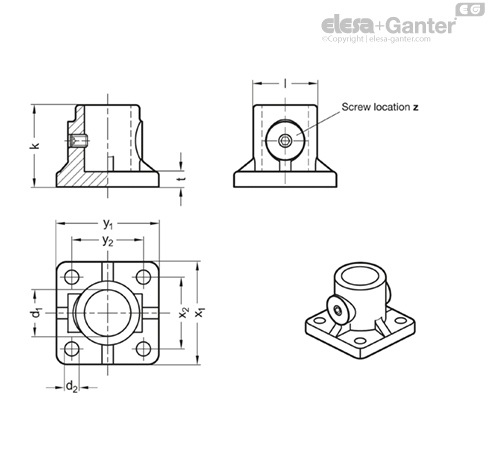

The clamping bore of base plate connector clamps GN 162.8 is not machined and designed for GN 990  or DIN 2391, DIN 2395 and DIN 2462 construction tubes.

At the screw location z a grub screw reduces the bore cross-section for clamping.
