GN 300.6

Adjustable Stainless Steel-Hand levers

Electropolished, with bushing / with threaded stud

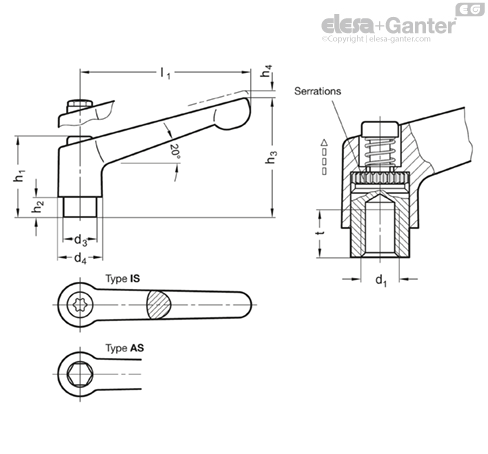

GN 300.6

Adjustable Stainless Steel-Hand levers
with threaded insert

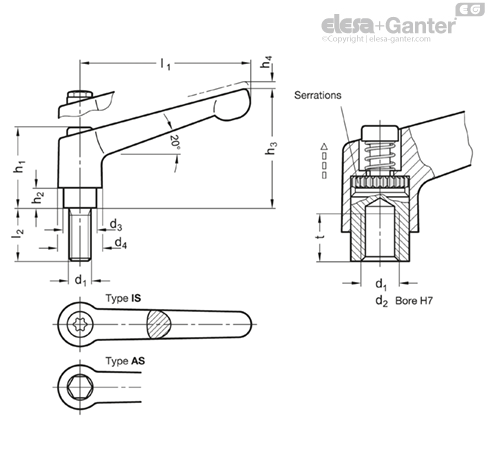

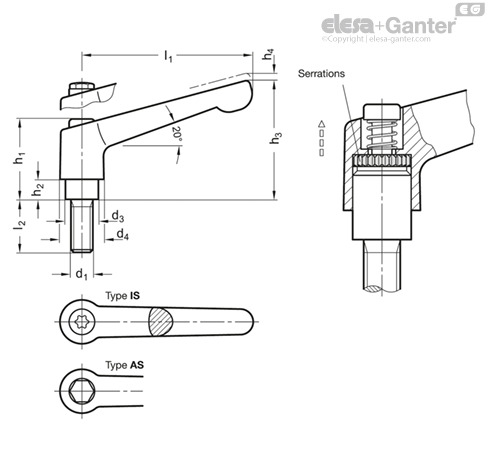

GN-300.6

Adjustable Stainless Steel-Hand levers
with threaded stud

GN 300.6

Adjustable Stainless Steel-Hand levers
with threaded insert

Types

  • Type AS: with external hexagon
  • Type IS: with internal hexalobular

Handle

Stainless Steel

Precision casting

  • Stainless Steel AISI CF-8
  • electropolished

Version with bushing

Bushing

Stainless Steel AISI 303

Retaining screw

Stainless Steel AISI 303

Spring

Stainless Steel AISI 301

Version with threaded stud

Threaded stud

Stainless Steel AISI 303

Retaining screw

Stainless Steel AISI 303

Spring

Stainless Steel AISI 301

Adjustable hand levers GN 300.6 with full Stainless Steel-Handle, correspond to applications where „agressive“ surrounding conditions are given, or where stainless steel materials are prescribed such as in food processing or chemical industry.

Retaining screws with hexagon head (Type AS) comply with the requirement "prevents water from accumulating".

Adjustable hand levers have proved to be ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.

Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.
