GN 300.4

Adjustable hand levers

Zinc Die Casting, with Increased Clamping Force

GN 300.4

Adjustable hand levers
with threaded insert

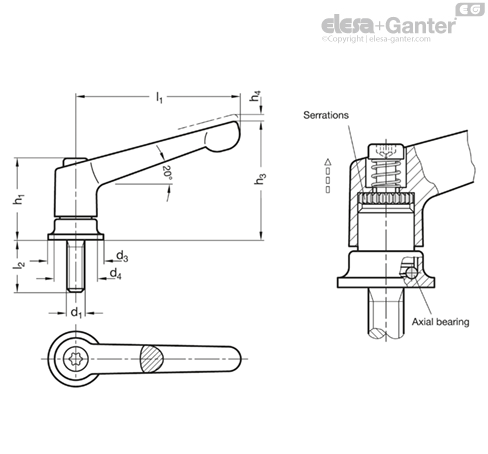

GN-300.4

Adjustable hand levers
with threaded stud

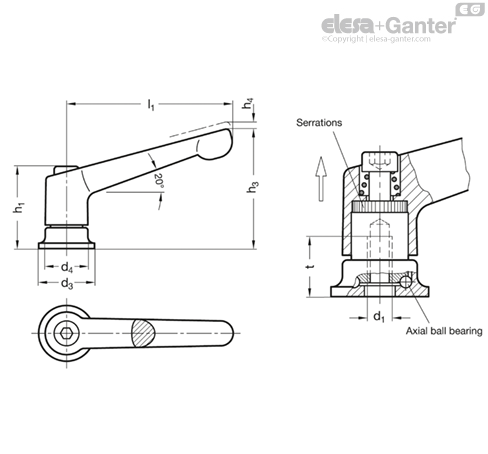

GN 300.4

Adjustable hand levers
with threaded insert

Handle

Zinc die casting

plastic coated

black, RAL 9005, textured finish SW

black, RAL 9011, silk finish SZ

orange, RAL 2004, textured finish OS

red, RAL 3000, textured finish RS

silver, RAL 9006, textured finish SR

chrome-plated CR

Version with bushing

Steel

nitrided, blackened

Retaining screw

Steel, blackend

Version with threaded stud

Steel, tensile strength class 5.8

nitrided, blackened

Retaining screw

Steel, blackened

Adjustable hand levers GN 300.4 are produced with a clamping area which is linked via a thrust ball bearing to the bush and screw respectively of the clamping lever. This has led to the following advantages:

- Doubled clamping force through vastly reduced friction.

- There is no movement on the contact area between adjustable hand lever and component which greatly reduces any marking on the clamping area

- In addition a reduced creep factor has been achieved by the increased preload.
