GN 125.5

Adjustable Stainless Steel-Flat tension levers

GN 125.5

Adjustable Stainless Steel-Flat tension levers
with threaded insert

GN-125.5

Adjustable Stainless Steel-Flat tension levers
with threaded stud

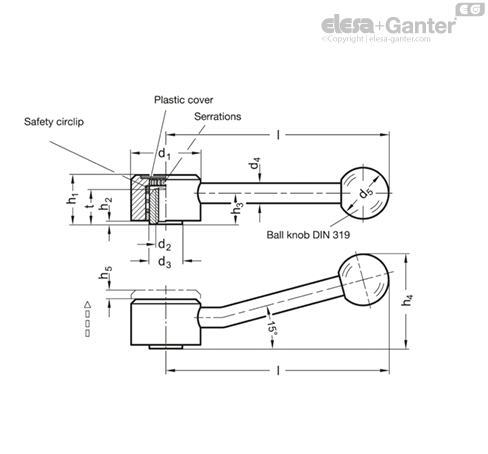

GN 125.5

Adjustable Stainless Steel-Flat tension levers
with threaded insert

Types

  • Type D: straight lever
  • Type E: angled lever

Stainless Steel AISI 303

matt shot-blasted

Plane surface with natural coloured,

anodized Aluminium-disc

Ball knobs DIN 319

Plastic, Duroplast

black, shiny finish

The overall height of Stainless Steel-tension levers GN 125.5 is reduced to a minimum.

As all other adjustable levers, they are ideal whenever parts have to be clamped in a confined space, or a particular lever position is required. The threaded insert is connected with the hub via serrations which can be disengaged

Pulling the lever, disengages the serrations and the lever can be swivelled to the ideal clamping position. On releasing the lever it will automatically re-engage.

  • with threaded through hole
