ERM.

Adjustable handles

Zinc alloy, steel or stainless steel clamping element

ERM-A

Adjustable handles
Black-oxide steel clamping element, threaded hole

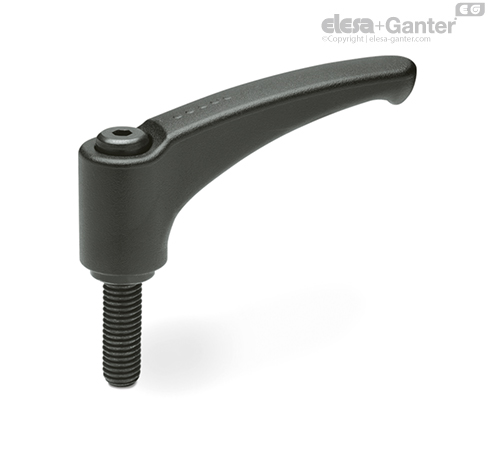

ERM-p

Adjustable handles
Black-oxide steel clamping element, threaded screw

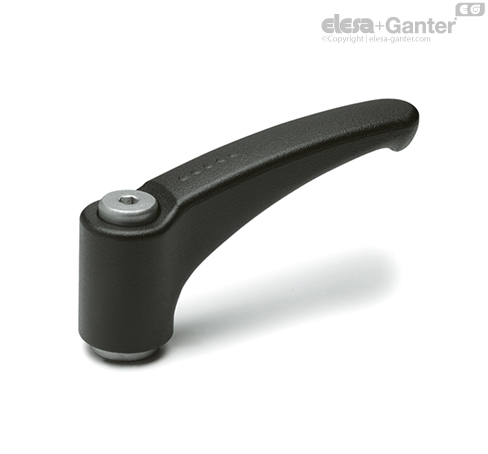

ERM-SST

Adjustable handles
Stainless steel clamping element, threaded hole

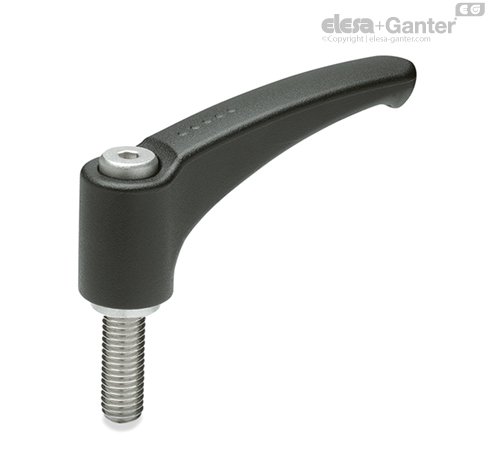

ERM-SST-p

Adjustable handles
Stainless steel clamping element, threaded screw

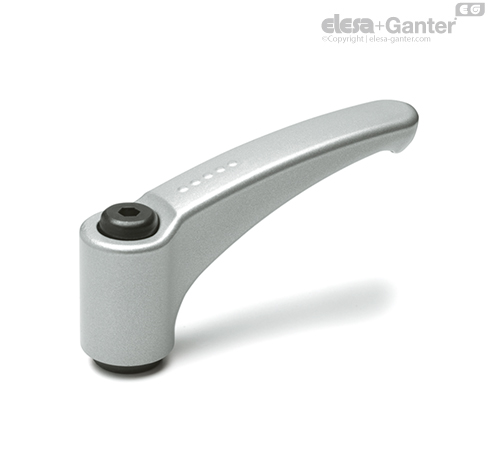

ERM-A

Adjustable handles
Black-oxide steel clamping element, threaded hole

Lever body

Die cast zinc alloy, epoxy resin coating, orange, red, silver, black colours, matte finish.

Standard executions

  • ERM-A: black-oxide steel clamping element with threaded hole and retaining screw. Steel return spring.
  • ERM-SST: AISI 303 stainless steel clamping element with threaded hole and retaining screw. AISI 301 stainless steel return spring.
  • ERM-p: black-oxide steel clamping element with threaded stud and retaining screw. Steel return spring.
  • ERM-SST-p: AISI 303 stainless steel clamping element with threaded stud and retaining screw. AISI 301 stainless steel return spring.

Retaining screw with six-lobed socket to fit TORX®.

Features and applications

Particularly suitable when the lever turning angle is limited owing to lack of space.

Special executions on request

  • Lever body in different colours.
  • Chrome-plated lever.
  • Clamping element with plain hole.

Instructions of use

For clamping, lift the lever to disengage the clamping device teeth and bring it back to start position. By releasing the lever, the return spring automatically engages the teeth.

If the lever cannot make a 360° rotation, the clamping element can be easily screwed by means of the six-lobed socket front head screw (after having disengaged the lever).

* Registered trademark by TEXTRON INC.
