GN 6335.5

Hand knobs

Aluminium / Stainless Steel

GN 6335.5-A4P

Hand knobs
Stainless Steel AISI 316

GN 6335.5-AM

Hand knobs
Aluminium, matt

GN 6335.5-AP

Hand knobs
Aluminium, polished

GN 6335.5-ES

Hand knobs
Stainless Steel

GN 6335.5-A4P

Hand knobs
Stainless Steel AISI 316

Types

  • Type AM: Hand knobs GN 6335.5, Aluminium (AL), matte (ground)
  • Type AP: Hand knobs GN 6335.5, Aluminium (AL), polished
  • Type ES: Hand knobs GN 6335.5, Stainless Steel precision casting, AISI 303, matte shot-blasted
  • Type A4P: Hand knobs GN 6335.5, Stainless Steel precision casting, AISI 316, polished

Threaded bolt

Stainless Steel AISI 303 / AISI 316

The threaded bolt is screwed in and secured by a cross-dowel.

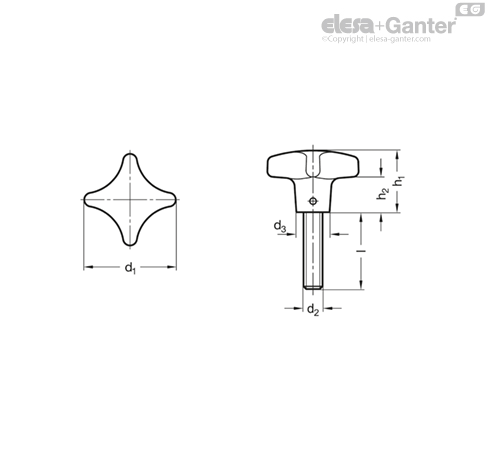

Hand knobs GN 6335.5 satisfy the dimensions of the DIN 6335 Type L but differ in terms of their non-scooping geometry, which makes cleaning easier and helps prevent possible build-up of dirt.

They are suitable for areas with special hygiene requirements and, thanks to the material used, for applications in highly corrosive environments.
