DIN 6336
Star knobs
Cast iron / Stainless Steel / Aluminium
DIN 6336-AL
Star knobs
Aluminium
DIN 6336-GG
Star knobs
Cast iron
DIN 6336-NI
Star knobs
Stainless Steel
DIN 6336-ZB
Star knobs
Zinc plated
DIN 6336-AL
Star knobs
Aluminium
Types
- Type A: without bore (unmachined)
- Type B: with plain through bore H7
- Type C: with plain blind bore H7
- Type D: with threaded through bore
- Type E: with threaded blind bore

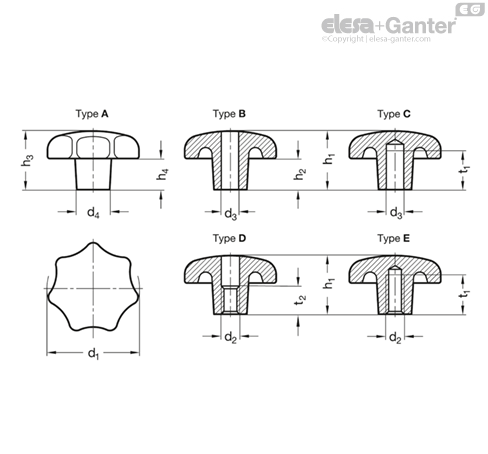

Cast iron GG
fettled and tumbled
zinc plated, blue passivated ZB
Thread: screw mobility
only types D and E

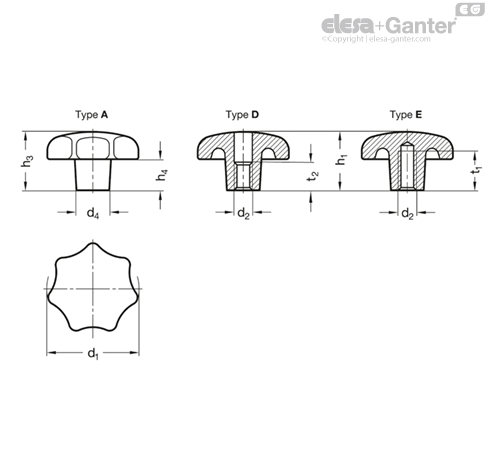

Stainless Steel precision casting NI
only types A, D, E
- AISI CF-8
- matt shot-blasted

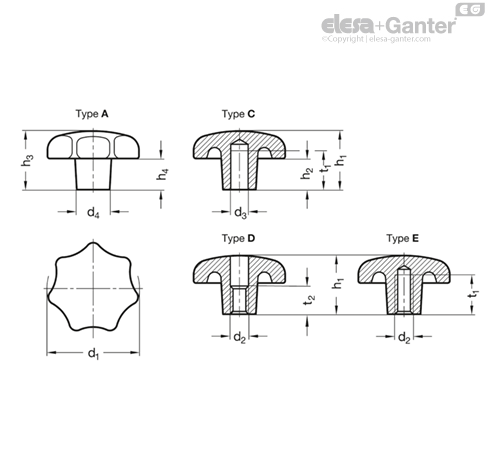

Aluminium AL
only types A, C, D, E
- matt finish (ground), flash mark not visible MT
- polished PL
