RE.C6-C

Castors for general use

Injected polyurethane coating

RE.C6-CBF

Castors for general use
Turning plate bracket and threaded centre pin, with brake

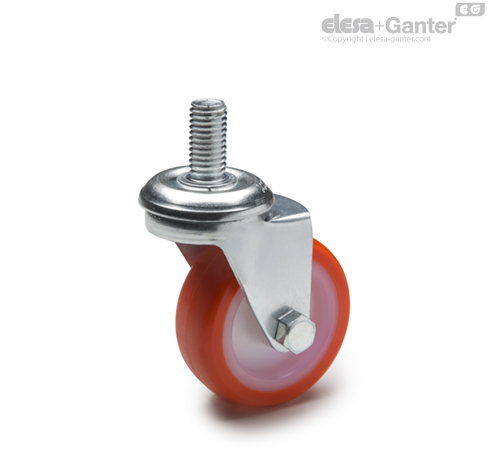

RE.C6-CBL

Castors for general use
Turning plate bracket and threaded centre pin, without brake

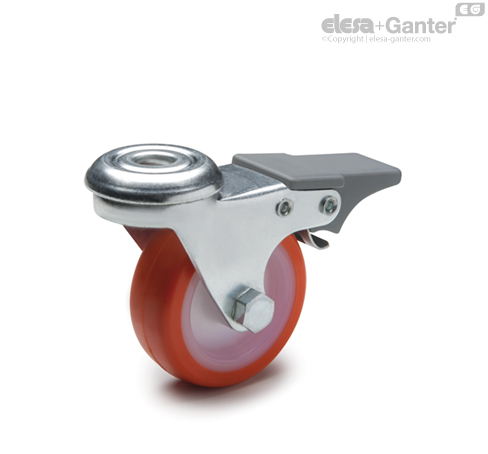

RE.C6-FBF

Castors for general use
Turning plate bracket and centre pass-through hole, with brake

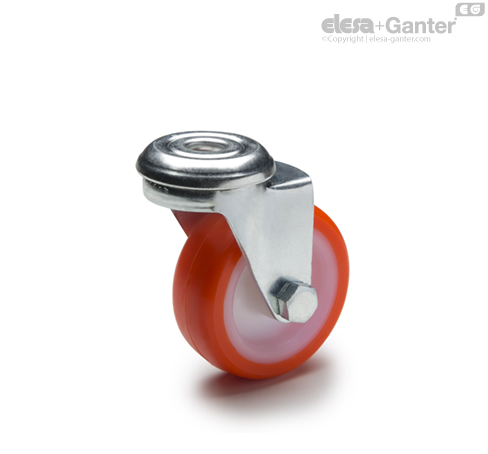

RE.C6-FBL

Castors for general use
Turning plate bracket and centre pass-through hole, without brake

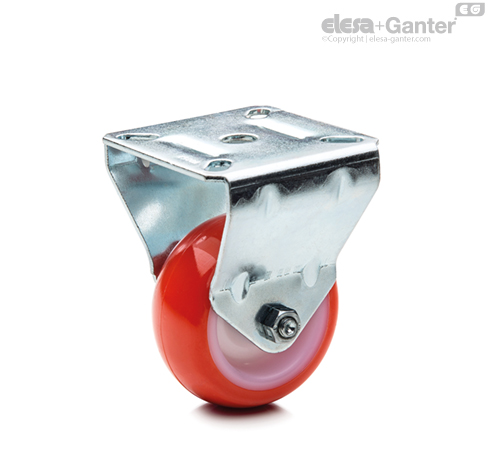

RE.C6-PBL

Castors for general use
Fixed plate bracket, without brake

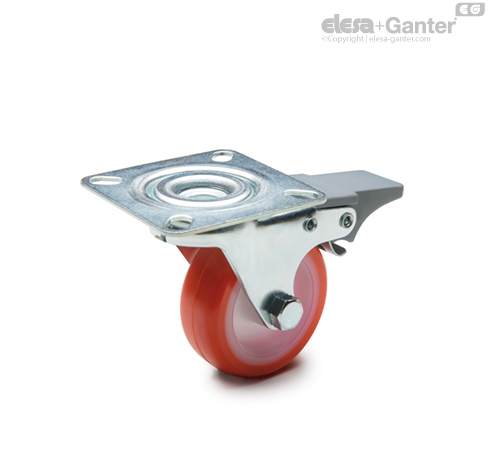

RE.C6-SBF

Castors for general use
Turning plate bracket, with brake

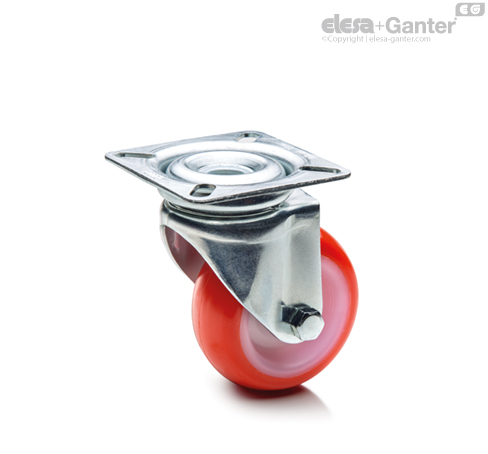

RE.C6-SBL

Castors for general use
Turning plate bracket, without brake

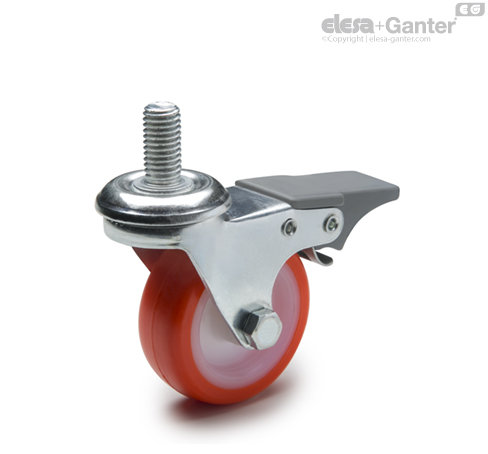

RE.C6-CBF

Castors for general use
Turning plate bracket and threaded centre pin, with brake

Covering

Injected polyurethane, hardness 55 Shore D.

Wheel centre body

Polyamide based (PA) technopolymer.

Rolling action

Hub with pass-through hole.

Fixed plate bracket

Electrolytically zinc-plated steel sheet bracket.

Turning plate bracket

Electrolytically zinc-plated steel sheet bracket.

The presence of a double ball race and direct contact between the plate and the ball race ring with built-in pin ensure excellent manoeuvrability.

Front-actuated brake

Total brake that locks the wheel and bracket rotation. The optimised dimensions and the retractible pedal ensure minimal space occupied and maximum actuation ease.

Standard executions

  • PBL: fixed plate bracket, without brake.
  • SBL: turning plate bracket, without brake.
  • SBF: turning plate bracket, with brake.
  • CBL: turning plate bracket and threaded centre pin, without brake.
  • CBF: turning plate bracket and threaded centre pin, with brake.
  • FBL: turning plate bracket and centre pass-through hole, without brake.
  • FBF: turning plate bracket and centre pass-through hole, with brake.

Applications

Castors for the general public, excellent rolling resistance and elasticity features, high wear and tearing resistance.

Environmental conditions

Suitable for use in industrial and institutional environments, even in the presence of moisture and chemical agents.

The good resistance to frequent cleaning cycles makes it suitable for environments where it is necessary to ensure hygiene.
